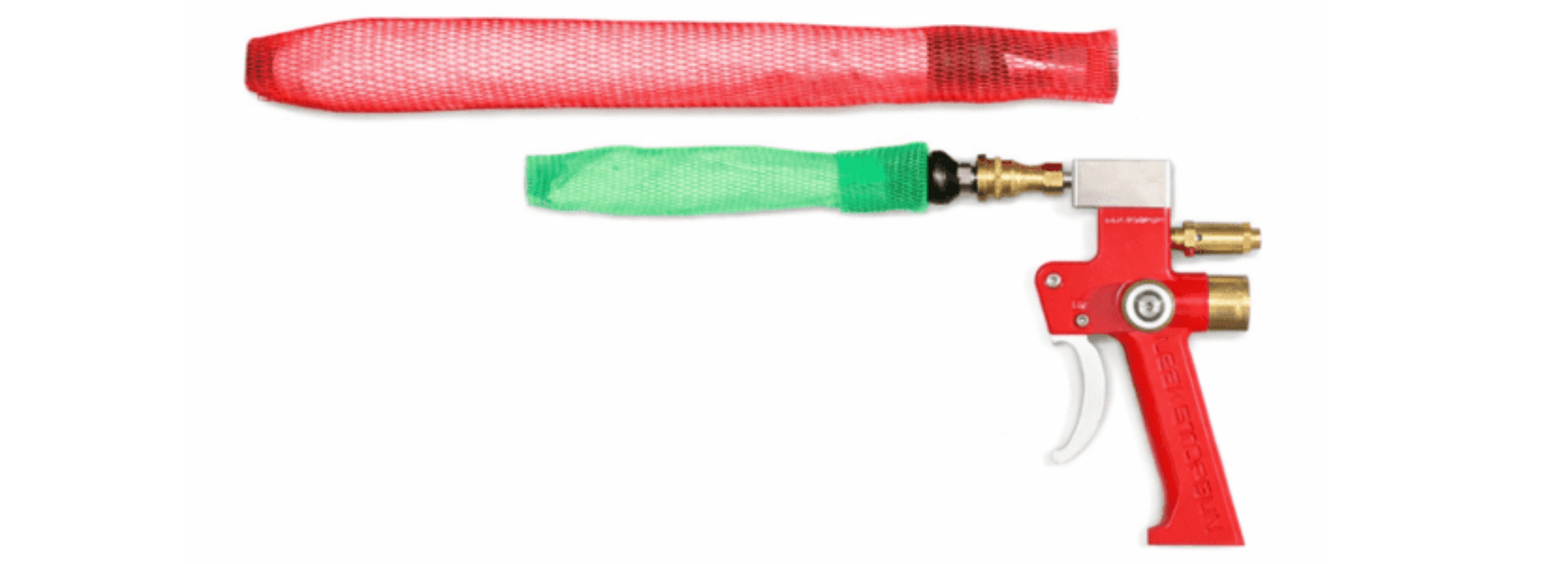

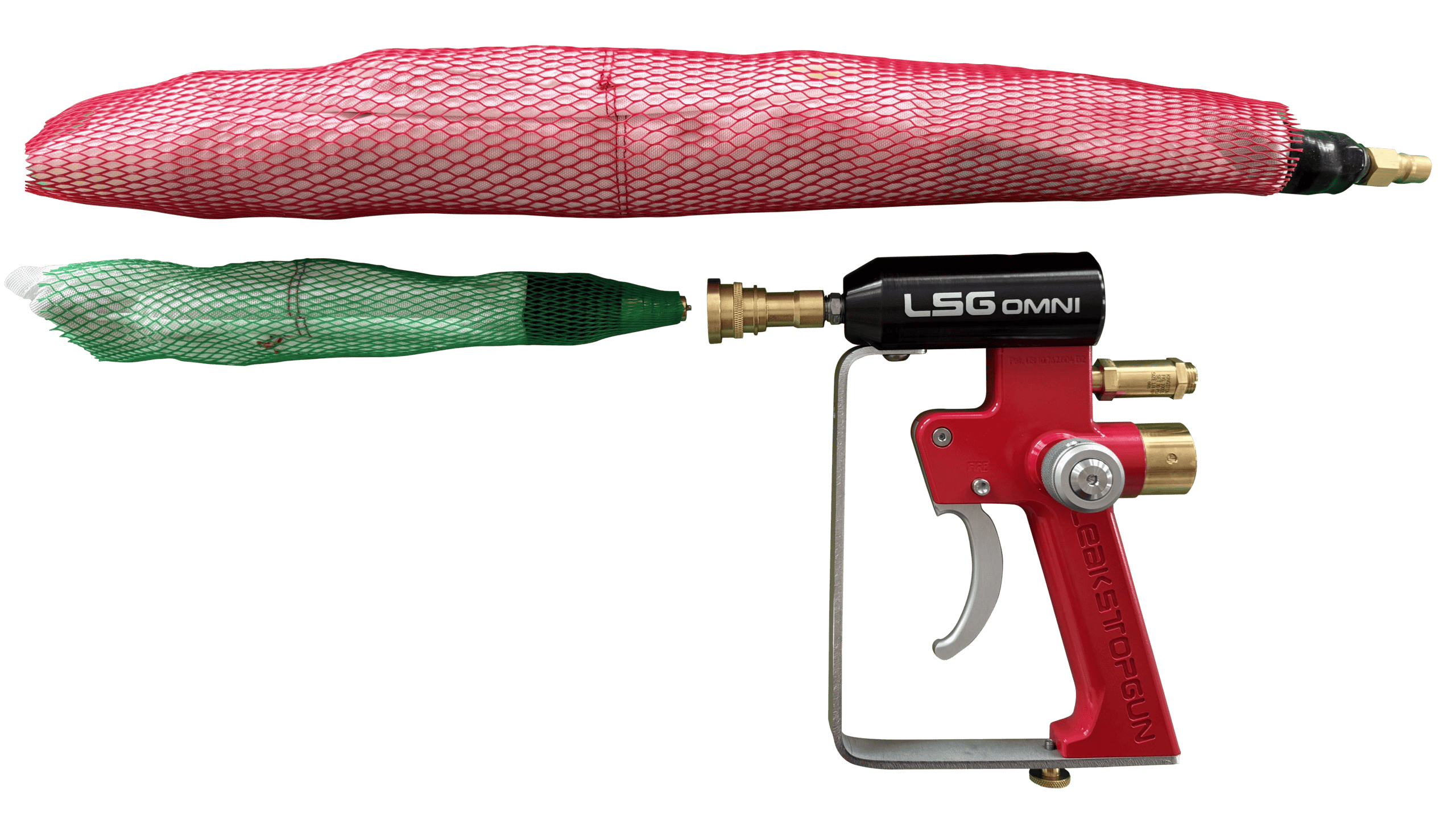

LSG Pistol
The USA-made LSG Pistol Model is ideal for tight quarters where the 150 or 400 models may not fit; made of aluminum and stainless steel.
Comes with one 150-balloon and one 400-balloon, CO₂ canister, and a hard shell pistol case.

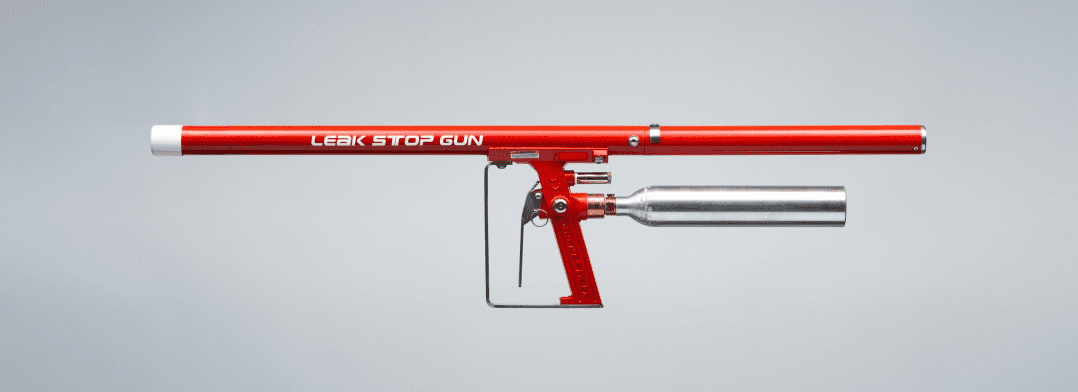

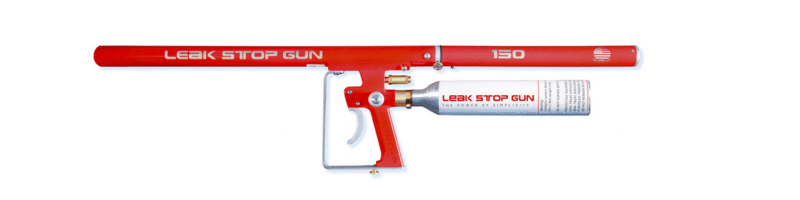

LSG 150
The USA-made LSG 150 is ideal for small leaks with diameters ranging from 2” to 5” and made of aluminum and stainless steel.
Comes with balloon, grounding wire, CO₂ canister, and storage system.

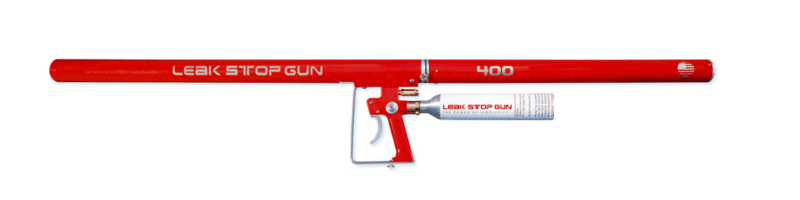

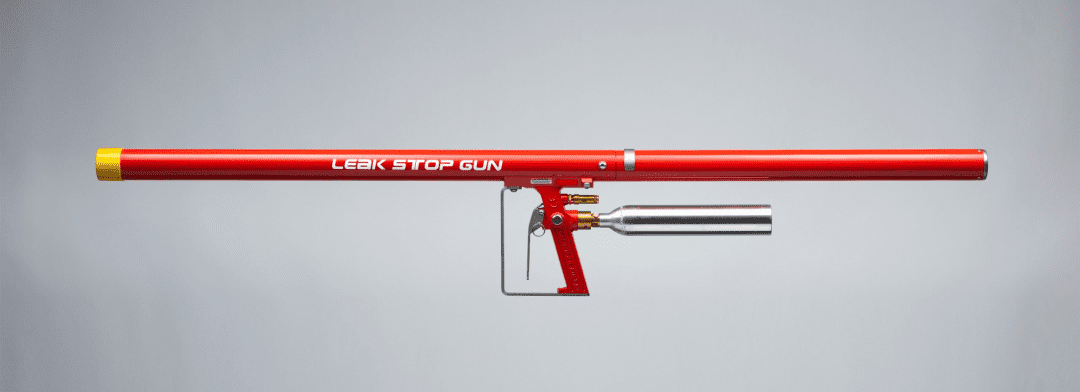

LSG 400
The USA-made LSG 400 is designed for leaks with diameters ranging from 5” to 14” and made from the same materials as the LSG 150.
Comes with balloon, grounding wire, CO₂ canister, and storage system.
The LSG Stops Leaks of All Sizes
Because all leaks are not created equal, the Leak Stop Gun is available in three models. The LSG 400 is made for stopping leaks from large-diameter tanks and pipes, the LSG 150 is designed to handle smaller leaks, and the LSG Pistol is for where the 150 or 400 models can't fit. The three models are made from the same materials, and their differences are highlighted in this table. You’ll also find useful information in the FAQs.
| Feature | LSG Pistol | LSG 150 | LSG 400 |
|---|---|---|---|
| Dimensions | 7 in. x 10 in. x 3.5 in. | 44 in. x 10 in. x 3.5 in. | 67 in. x 11 in. x 4 in. |
| Weight | 5 lbs. | 13 lbs. (6kg) | 24 lbs. (11kg) |
| Tube Material | N/A (No Barrel) | Stainless Steel | Stainless Steel |
| Pistons & End Caps | N/A (No Barrel) | Aluminum & Plastic | Aluminum & Plastic |
| Handle | Aluminum | Aluminum | Aluminum |
| Extraction Unit | Stainless Steel | Stainless Steel | Stainless Steel |
| Valves | Brass & Stainless Steel | Brass & Stainless Steel | Brass & Stainless Steel |
| Venting Aid for Bubble | Brass, Stainless Steel & Copper | Brass, Stainless Steel & Copper | Brass, Stainless Steel & Copper |
| Gas Cylinder Material | Aluminum & Steel | Aluminum & Steel | Aluminum & Steel |
| Hole Diameter Range | 2 in. to 5 in. AND 5 in. to 14 in. (50mm-120mm) AND (120mm-355mm) (It can blow up both types of balloons) |
2 in. to 5 in. (50mm-120mm) | 5 in. to 14 in. (120mm-350mm) |
| Operating Pressure | 1.9-2.0 bar | 1.9-2.0 bar | 1.9-2.0 bar |

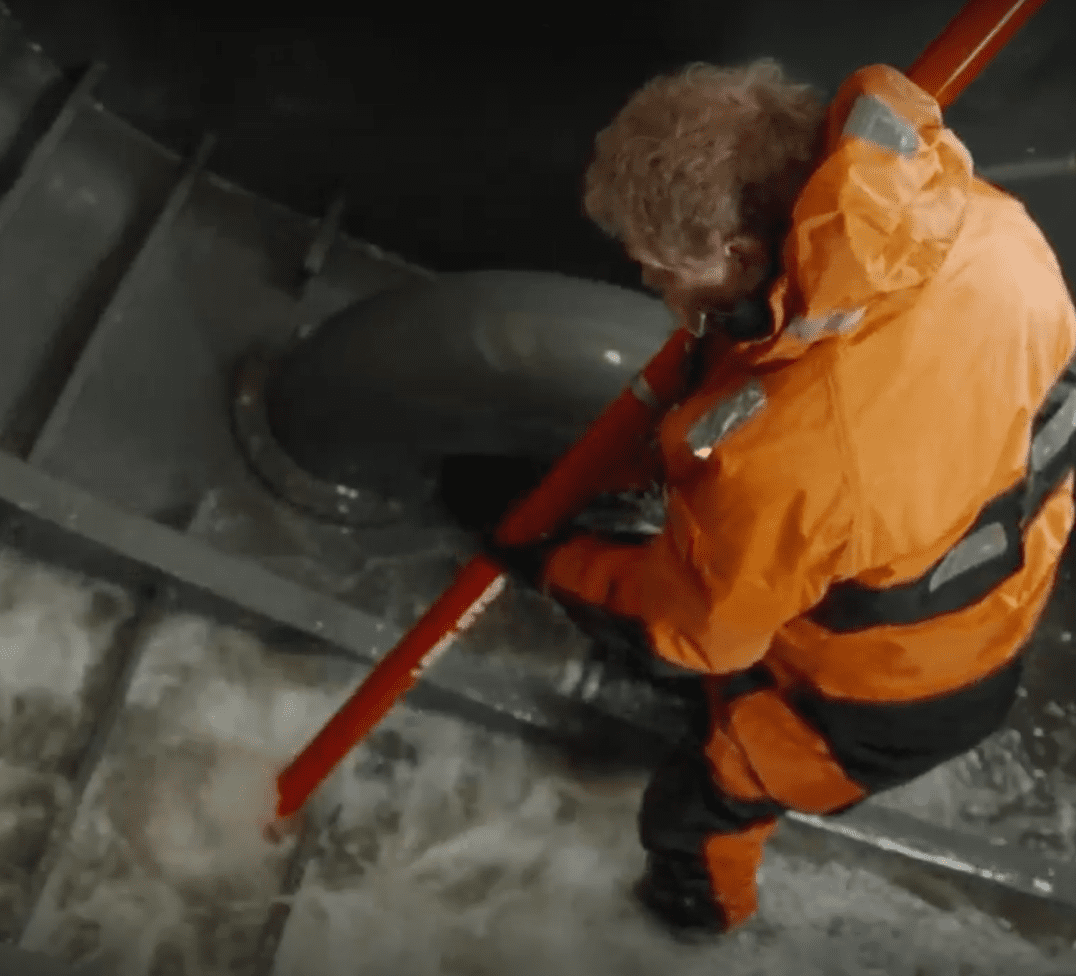

How Does the Leak Stop Gun Work?
General Operation
Pipes & Tanks
FAQ
How does the Leak Stop Gun work?
Operating the Leak Stop Gun is a straightforward, 3-step process that you can see in action here
Why are the Leak Stop Guns so large?
The size of the balloons determines the LSG size. The larger balloon requires larger internal pistons to operate. The weight of the LSGs also helps the operator keep the device stable in the face of a gushing leak.
How do you reload the Leak Stop Guns?
How long does a filled balloon last?
While environmental factors mean we cannot guarantee a specific answer, numerous tests have shown the LSG balloons to last between 24-48 hours before needing a top-up of CO₂.
Will a LSG balloon withstand sharp edges?
The balloon is made with double-layered material. The inner bladder holds the CO₂ while the outer layer is designed to be rip and tear resistant.
How many shots will the CO₂ bottle last?
8-10 inflations with the LSG 150 or 1-2 with the LSG 400
Why use CO₂?
CO₂ is a stable gas that, in the case of a fire risk, is inflammable.
What comes standard in an LSG kit?
Each LSG kit includes the LSG 150/400, a hard shell case, two balloons, and two CO₂ cylinders.
Can the two LSGs work together?
As most leaks in the real world will not be perfectly circular, the LSG 150 and LSG 400 can complement each other well to help plug uneven-shaped leaks.
Can I use one gun for both size ballons?
No. The different balloons require different piston sizes to operate.
What are some common applications for the LSG 400?
The LSG 400 is ideal for use by fire departments, on ships, at petrochemical plants and oil refineries and storage tank facilities, tank truck operators, and in agricultural and biogas environments.
What are some common applications for the LSG 150?
The LSG 150 is designed for use with relatively small-diameter pipe leaks such as those caused by excavators used on construction and maintenance projects.
Why use the LSG 400 instead of the LSG 150?
The LSG 400 is used to seal leaks with diameters ranging from 5 in. to 14 in. (120mm-350mm). In contrast, the LSG 150 is used to seal leaks with diameters ranging from 2 in. to 5 in. (50mm-120mm).
Where is the LeakStopGun manufactured?
The LSG is 100% U.S. manufactured. The Leak Stop Gun manufacturing facility is located in Pittsburgh, Pennsylvania.
What Patents do you hold?
Our patents include:
- USA: Patent # US 10,767,804 B2
- Canada: Patent # 3,034,762
- Brazil: Patent # BR112019003716-0
What is the Leak Stop Gun Pistol Model designed for?
The Pistol Model is designed for tight quarters where the 150 or 400 models may not fit. Its compact size makes it easier to maneuver in confined spaces while still providing reliable balloon inflation.
Can the Pistol Model be used for preventive maintenance?
Yes. The Pistol Model can be used as a preventive maintenance tool by inflating either balloon size before a leak or issue becomes more serious. It is easy to handle by one person and features a quick connect, allowing multiple balloons to be inflated quickly.
Can the Pistol Model extend the life of deployed balloons?
Yes. The Pistol Model can also be used as a reconditioning tool. If deployed balloons begin losing CO₂, the pistol can be reattached using the quick connect to add more CO₂, helping extend the seal life of the balloon.

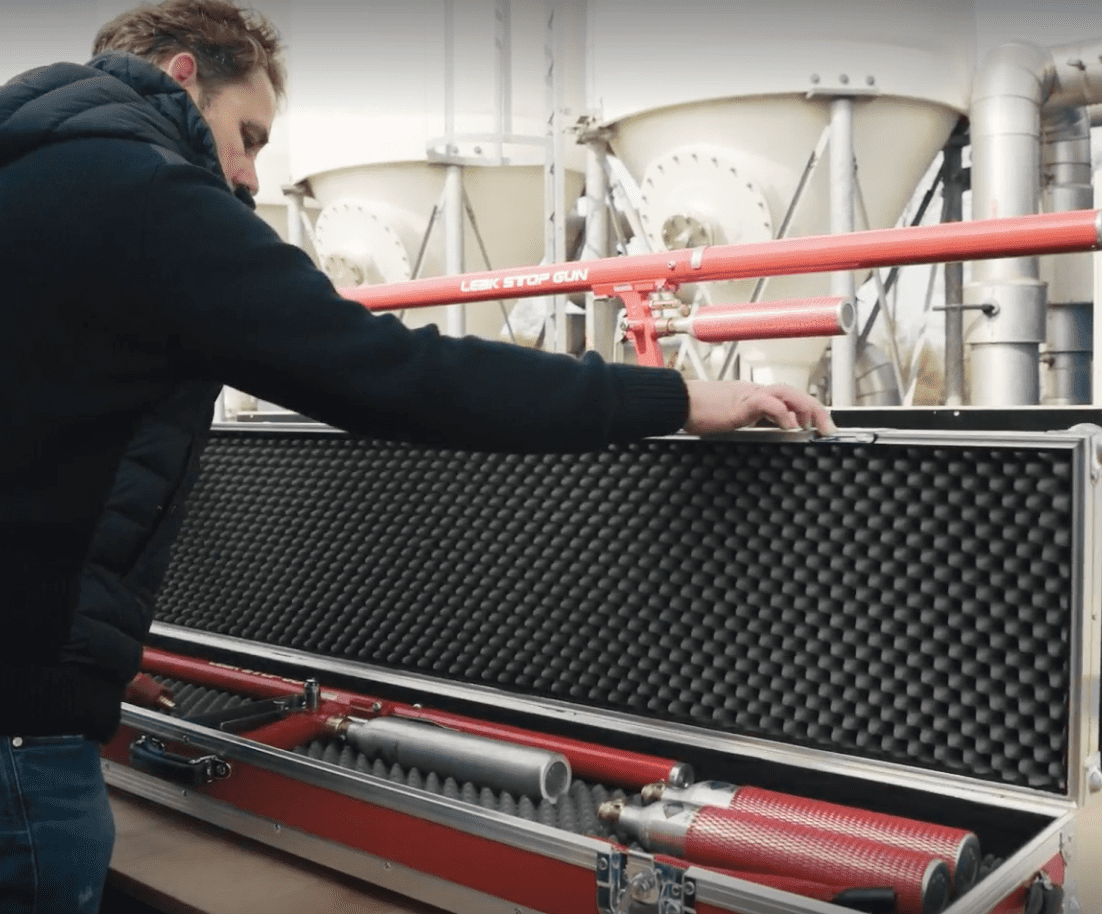

Our Commitment
